Statechart Notation - Exercise Result

You entered:

Build Statechart

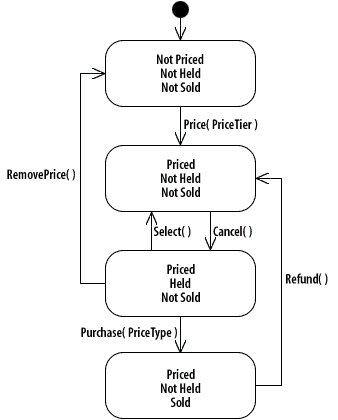

The solution below identifies four unique states that result from the actions performed on the ShowSeat. The events that caused the transitions are the events that appeared in the sequence diagrams as incoming arrows.
Four unique states that result from the actions performed on the ShowSeat.
Four unique states that result from the actions performed on the ShowSeat.
